CELL-T90-KIT
LED Module & T90 Frame Kit
Finish Colour
The CELL T90 KIT are a plug and play LED lamp module and LED driver set.
Features:
- 9W or 13W LED with selectable 5CCT
- Direct replacement for MR16 halogen lamps
- Fits most MR16 downlight frames
- Choice of 15°, 24°, 36° or 60° beam angles
- Interchangeable click-in frame system
- Easy colour temperature selection via dip switch
- Fully dimmable LED driver included
- Complete with flex and plug
- 3-Year Replacement Warranty
Specifications
Variants
| Image | Variant ID | Item No. | Wattage | Finish Colour | Beam Angle | Cutout Diameter | Dimming | Tilt | Colour Temperature | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
|
|

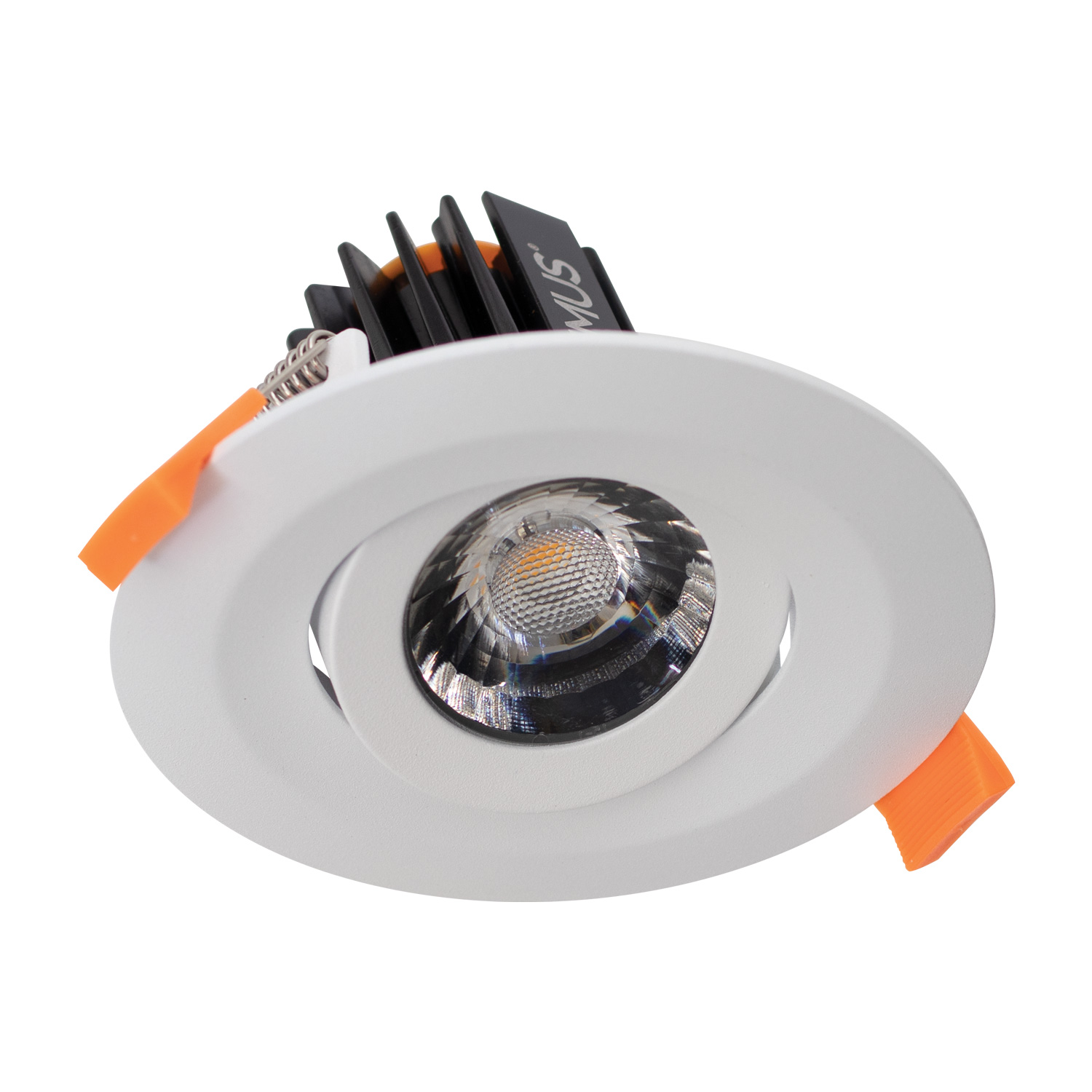

21678 | CELL-9-5CCT-T90 | 9W | White | 60° | Ø85-90mm | Yes | 15° | 2700K - 3000K - 4000K - 5000K - 5700K (Switchable) |
|
|
|

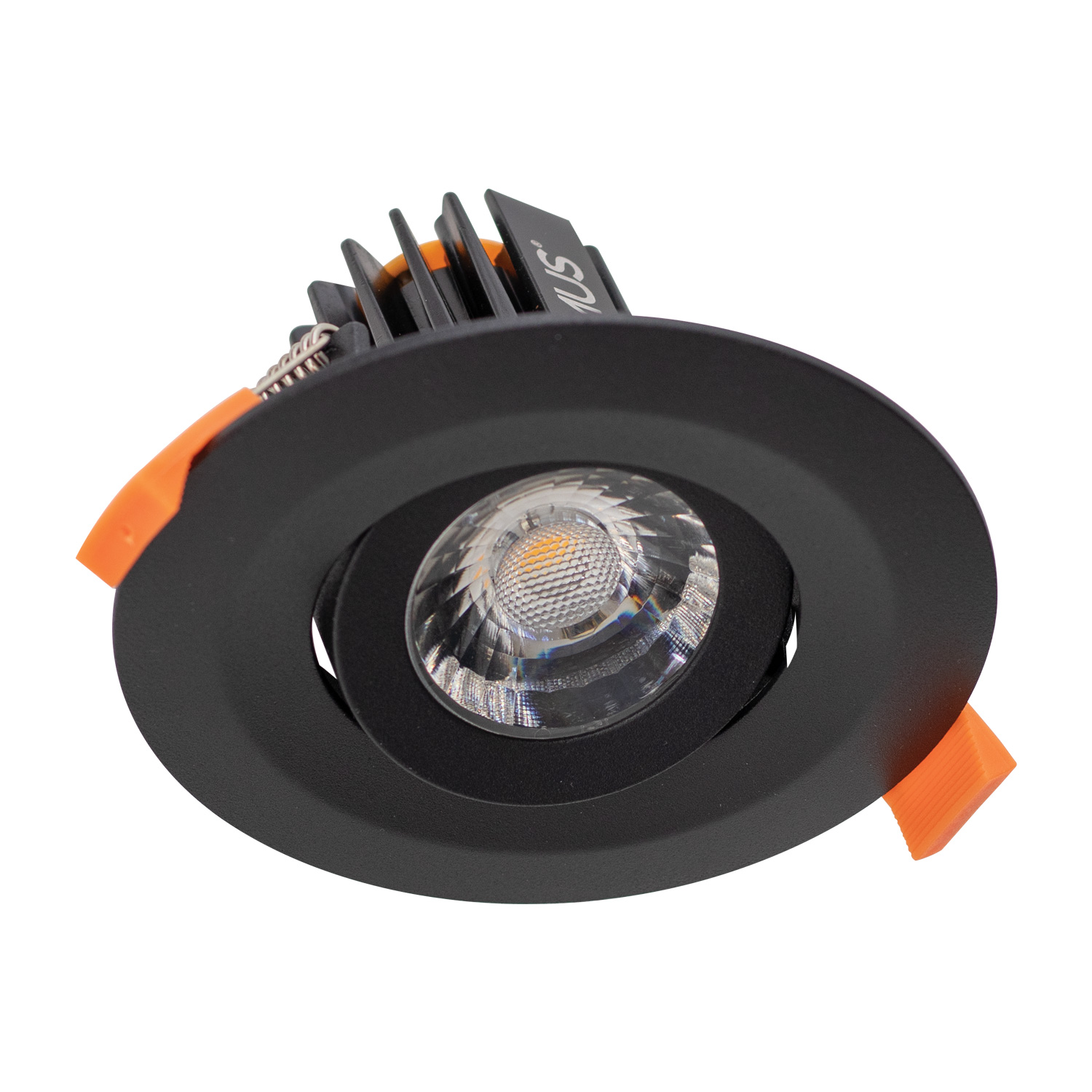

21679 | CELL-9-5CCT-T90 | 9W | Black | 60° | Ø85-90mm | Yes | 15° | 2700K - 3000K - 4000K - 5000K - 5700K (Switchable) |
|
|
|
21688 | CELL-13-5CCT-T90 | 13W | White | 60° | Ø85-90mm | Yes | 15° | 2700K - 3000K - 4000K - 5000K - 5700K (Switchable) |
|
|
|
21689 | CELL-13-5CCT-T90 | 13W | Black | 60° | Ø85-90mm | Yes | 15° | 2700K - 3000K - 4000K - 5000K - 5700K (Switchable) |
|
