DECO-13-SQR

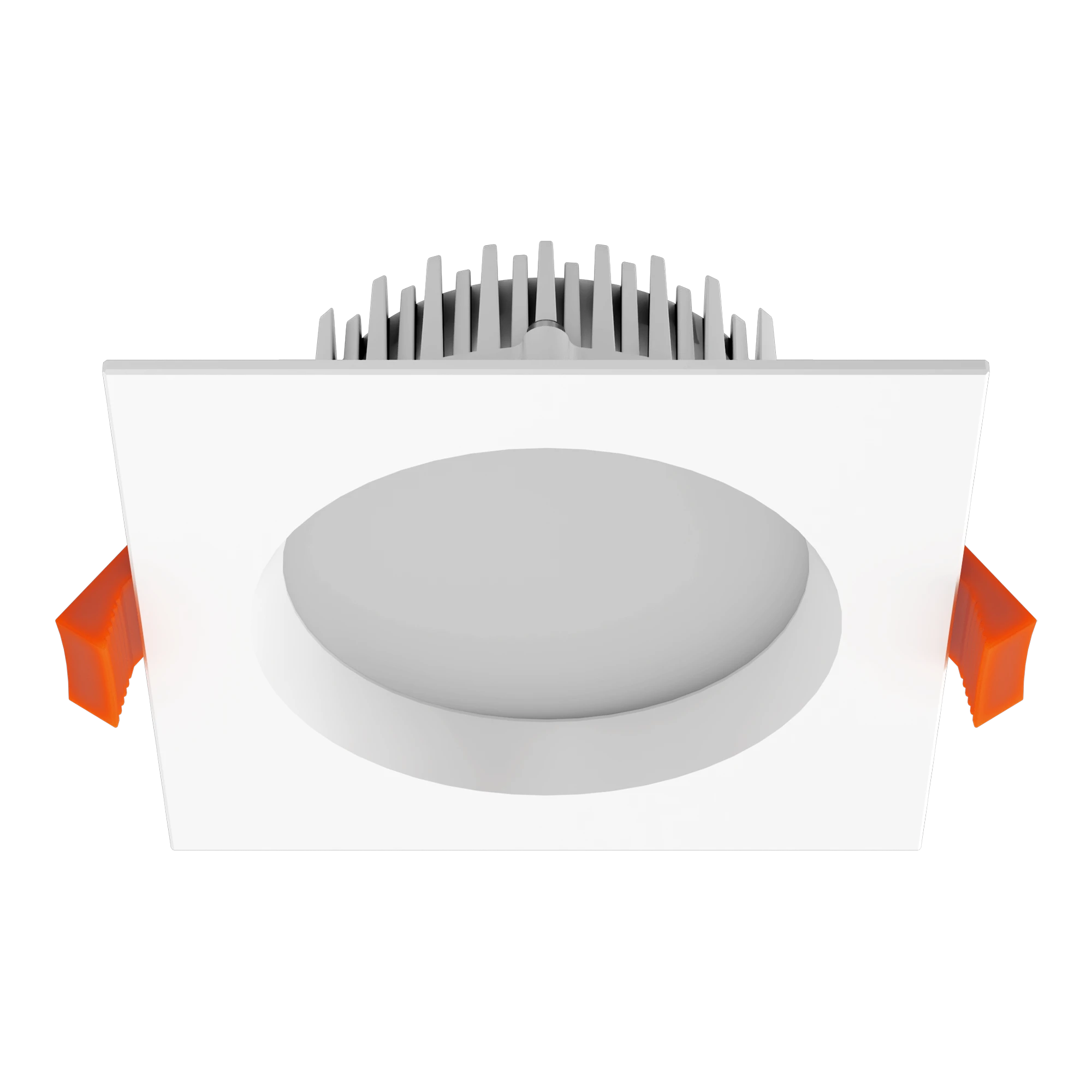

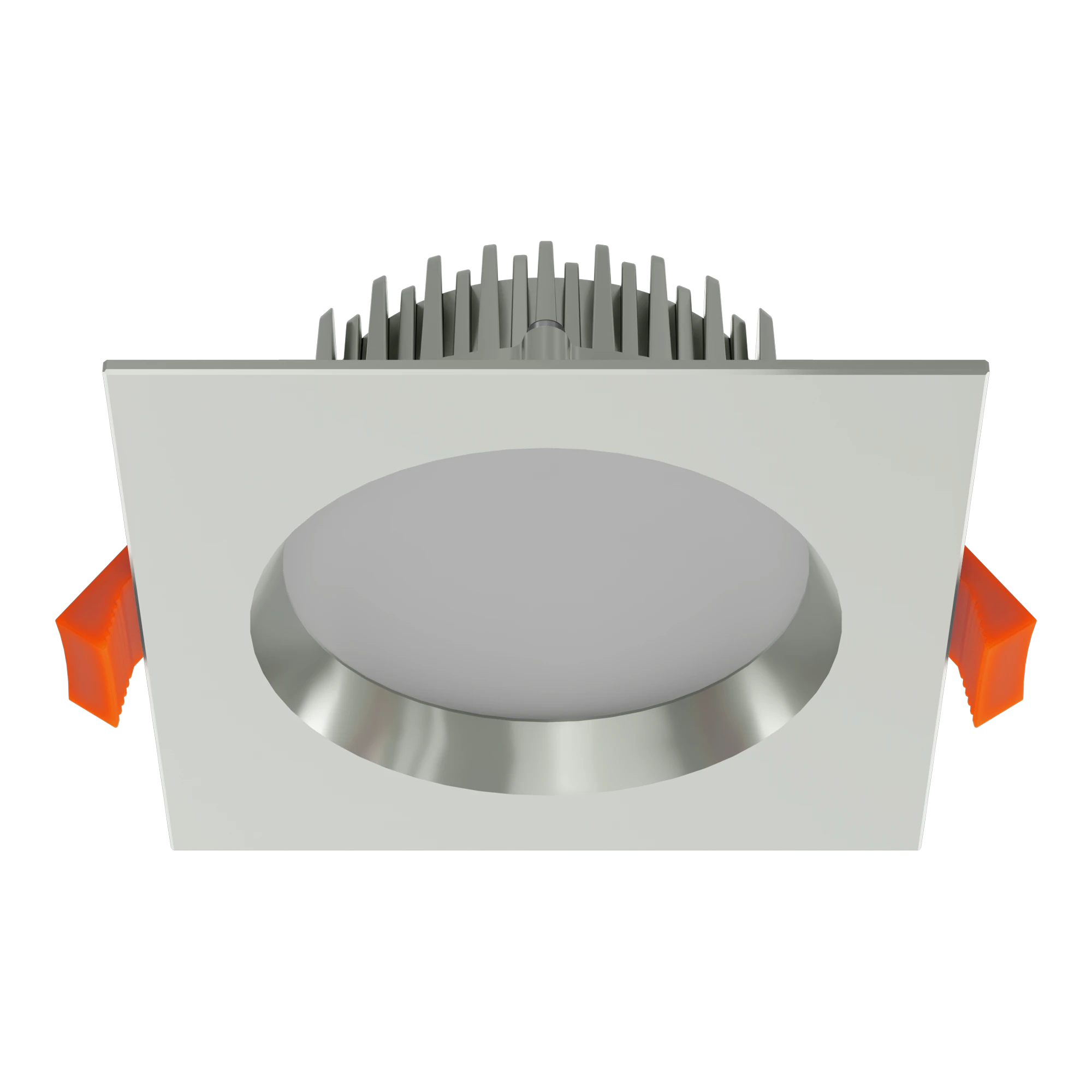

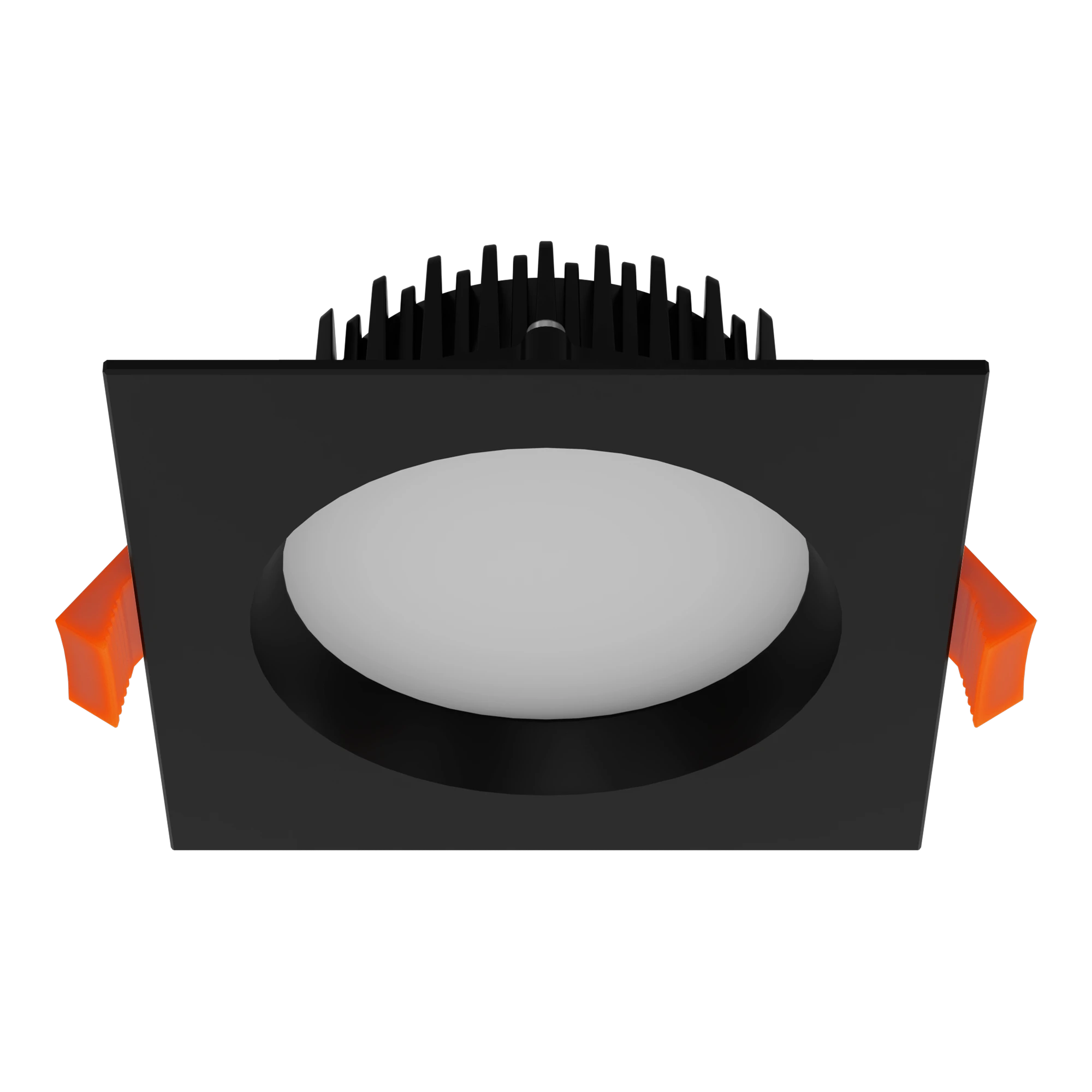

13W LED Tri-Colour Square Dimmable Deepset Downlight
Finish Colour
White
Black
Aluminium
The DECO range of LED downlights have been designed with a deep-set frame to reduce glare from the light source.
Features:
- Ultra-slim design for shallow ceiling spaces
- Wide beam distribution for even light coverage
- TRIO selectable colour temperatures
- Rear dip-switch for easy CCT adjustment
- Fully dimmable operation
- Complete with dimmable LED driver, flex and plug
- Ideal for low-clearance installations
Specifications
Wattage
13W
Finish Colour
White
Black
Aluminium
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
Yes
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Lumen Output
1160lm/1220lm/1260lm
Variants
| Image | Variant ID | Item No. | Wattage | Finish Colour | Beam Angle | Cutout Diameter | Dimming | Tilt | Colour Temperature | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
20425 | DECO-13-SQR | 13W | White | 90° | Ø90mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
20528 | DECO-13-SQR | 13W | Black | 90° | Ø90mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
20427 | DECO-13-SQR | 13W | Aluminium | 90° | Ø90mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21591 | DECO-13-SQR-DALI | 13W | White | 90° | Ø90mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21592 | DECO-13-SQR-DALI | 13W | Black | 90° | Ø90mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21593 | DECO-13-SQR-DALI | 13W | Aluminium | 90° | Ø90mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
Variant ID
20425
Item No.
DECO-13-SQR
Wattage
13W
Finish Colour
White
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
20528
Item No.
DECO-13-SQR
Wattage
13W
Finish Colour
Black
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
20427
Item No.
DECO-13-SQR
Wattage
13W
Finish Colour
Aluminium
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21591
Item No.
DECO-13-SQR-DALI
Wattage
13W
Finish Colour
White
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21592
Item No.
DECO-13-SQR-DALI
Wattage
13W
Finish Colour
Black
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21593
Item No.
DECO-13-SQR-DALI
Wattage
13W
Finish Colour
Aluminium
Beam Angle
90°
Cutout Diameter
Ø90mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
