DECO-8

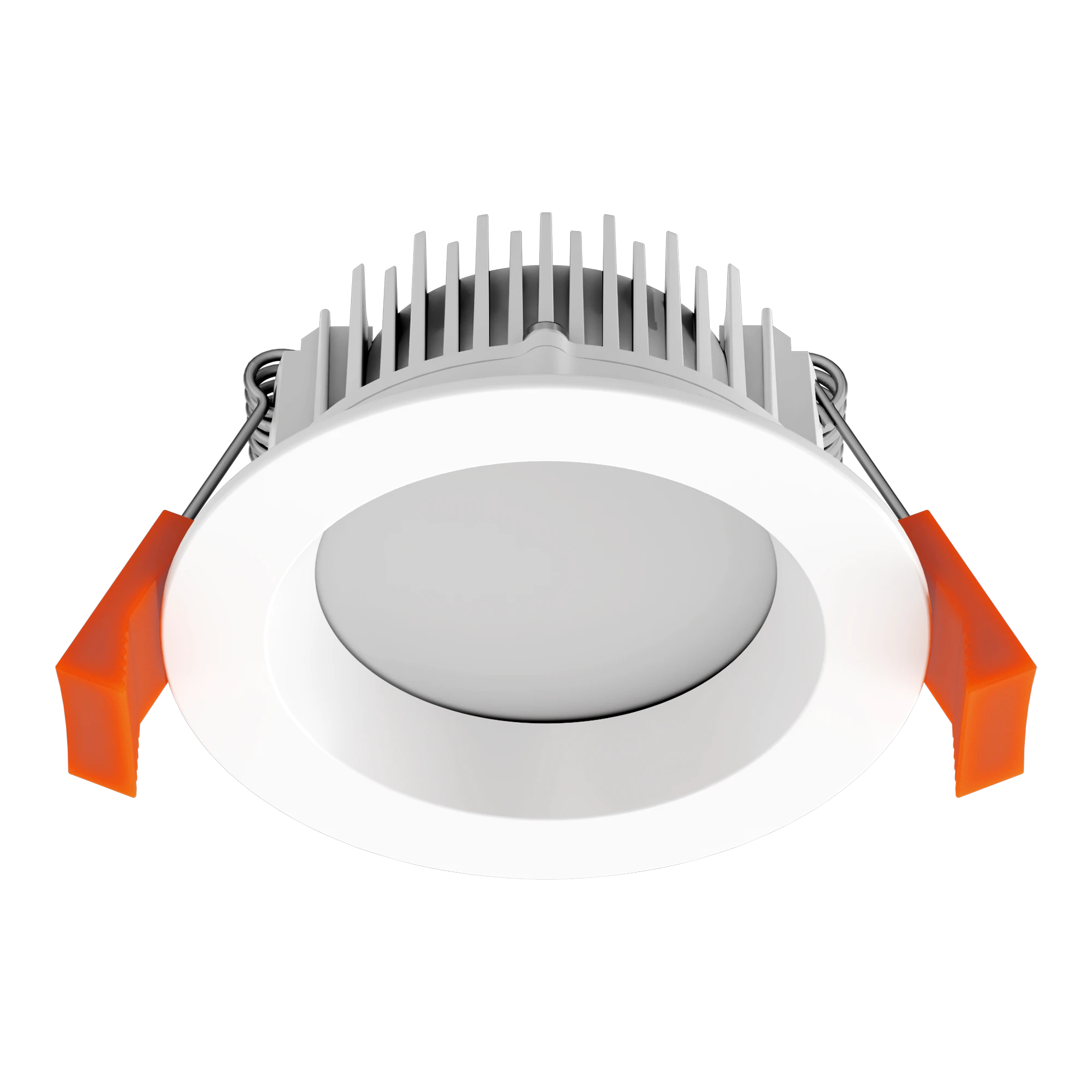

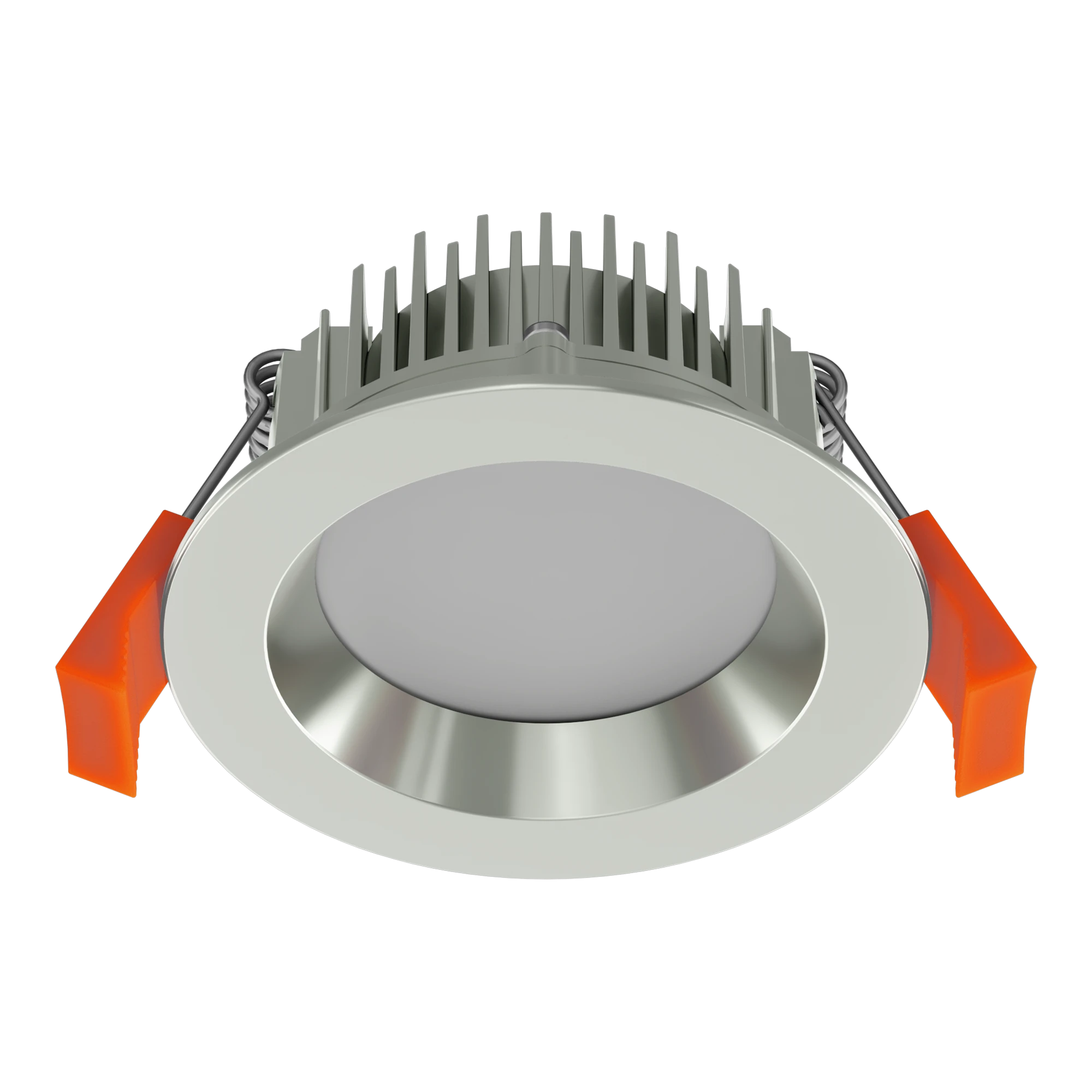

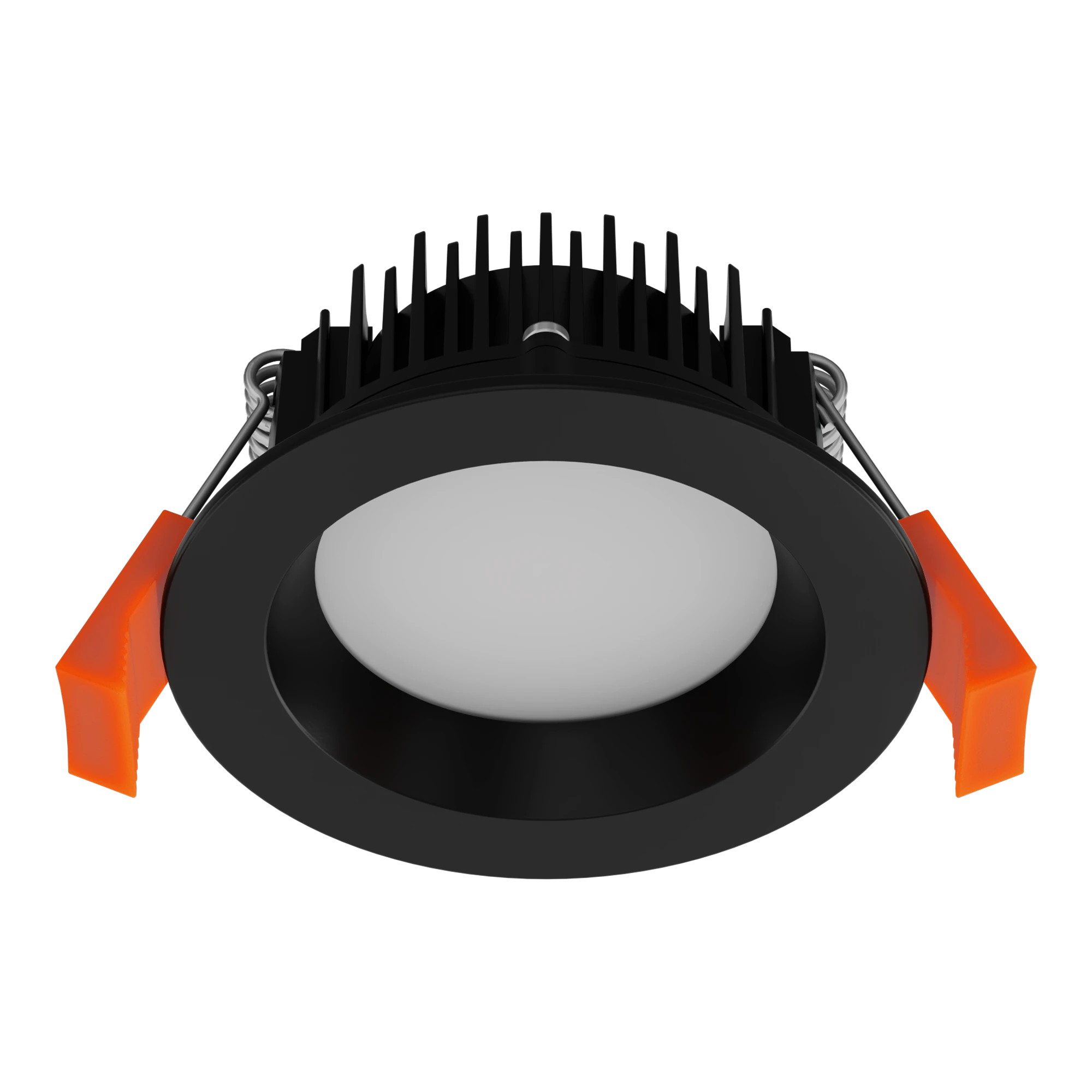

8W LED Tri-Colour Round Dimmable Deepset Downlight
Finish Colour
White
Black
Aluminium
The DECO range of LED downlights have been designed with a deep-set frame to reduce glare from the light source.
Features:
- Ultra-slim profile for shallow ceiling spaces
- Wide light distribution
- TRIO selectable colour temperatures
- Rear dip-switch CCT selection
- Fully dimmable
- Complete with LED driver, flex and plug
- Quick and easy installation
Specifications
Wattage
8W
Finish Colour
White
Black
Aluminium
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
Yes
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Lumen Output
700lm/750lm/800lm
Variants
| Image | Variant ID | Item No. | Wattage | Finish Colour | Beam Angle | Cutout Diameter | Dimming | Tilt | Colour Temperature | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
20410 | DECO-8 | 8W | White | 90° | Ø70-75mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
20411 | DECO-8 | 8W | Black | 90° | Ø70-75mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
20412 | DECO-8 | 8W | Aluminium | 90° | Ø70-75mm | Yes | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21585 | DECO-8-DALI | 8W | White | 90° | Ø70-75mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21586 | DECO-8-DALI | 8W | Aluminium | 90° | Ø70-75mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
|
|
21587 | DECO-8-DALI | 8W | Black | 90° | Ø70-75mm | DALI | No | 3000K - 4000K - 5700K (Switchable) |
|
Variant ID
20410
Item No.
DECO-8
Wattage
8W
Finish Colour
White
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
20411
Item No.
DECO-8
Wattage
8W
Finish Colour
Black
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
20412
Item No.
DECO-8
Wattage
8W
Finish Colour
Aluminium
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
Yes
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21585
Item No.
DECO-8-DALI
Wattage
8W
Finish Colour
White
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21586
Item No.
DECO-8-DALI
Wattage
8W
Finish Colour
Aluminium
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
Variant ID
21587
Item No.
DECO-8-DALI
Wattage
8W
Finish Colour
Black
Beam Angle
90°
Cutout Diameter
Ø70-75mm
Dimming
DALI
Tilt
No
Colour Temperature
3000K - 4000K - 5700K (Switchable)
