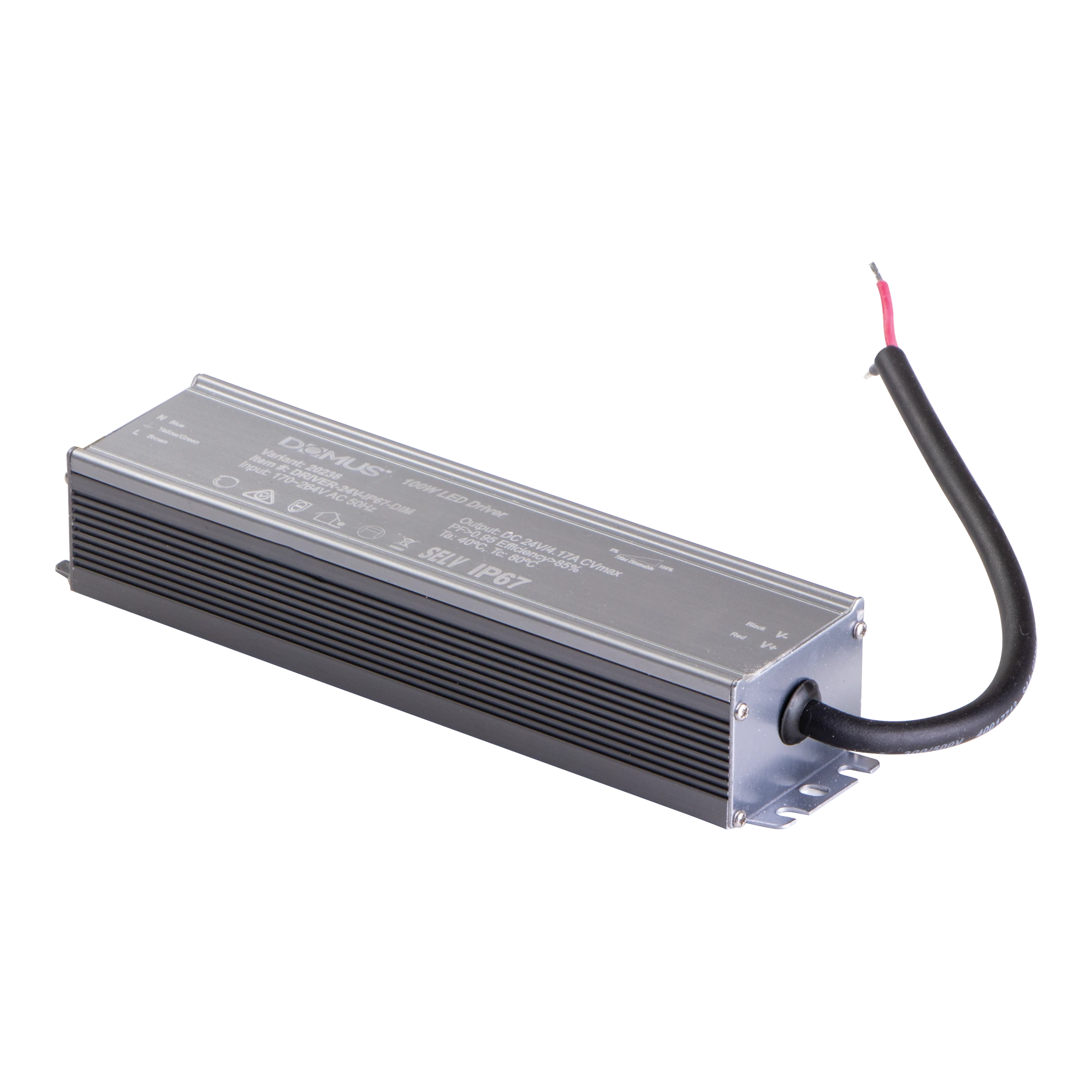

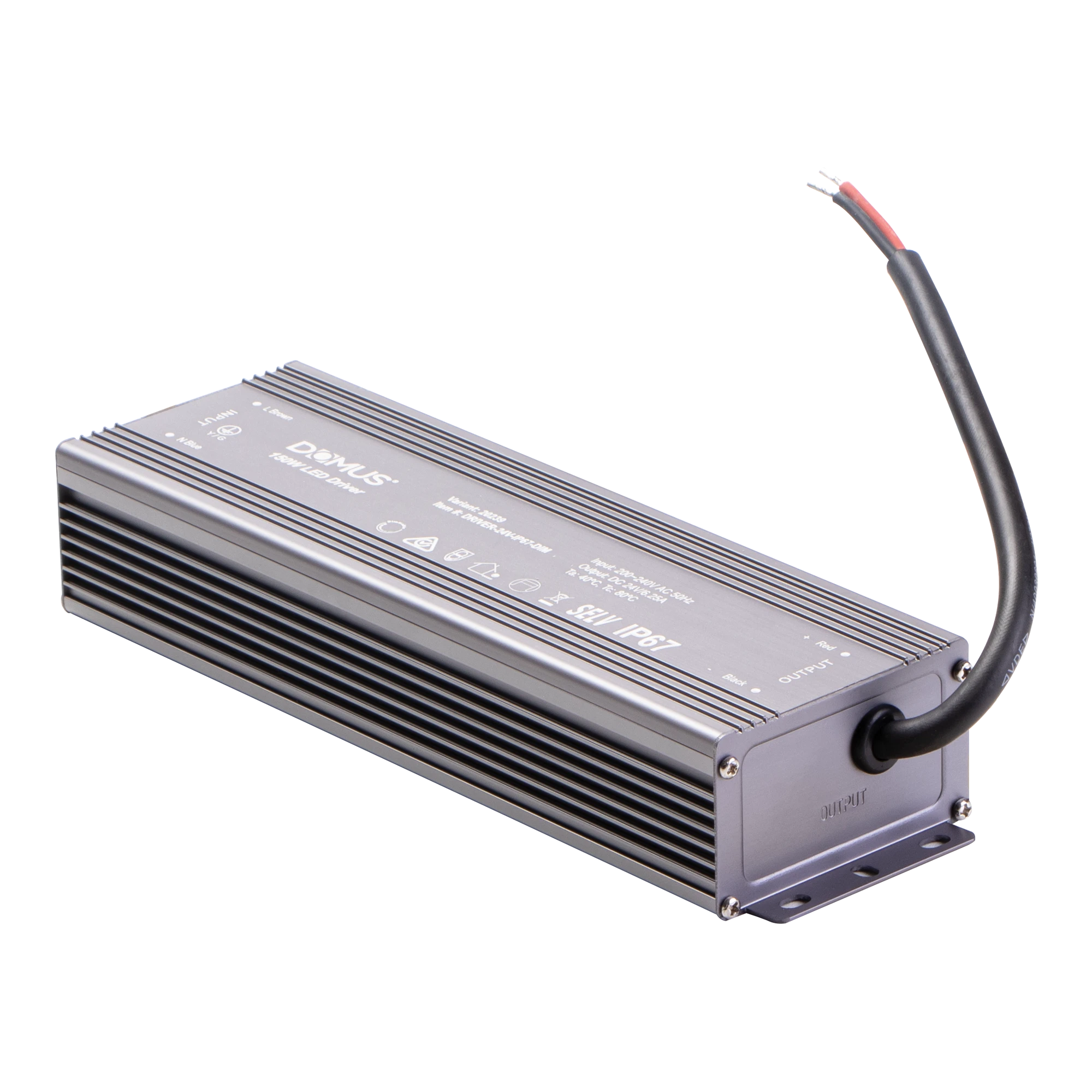

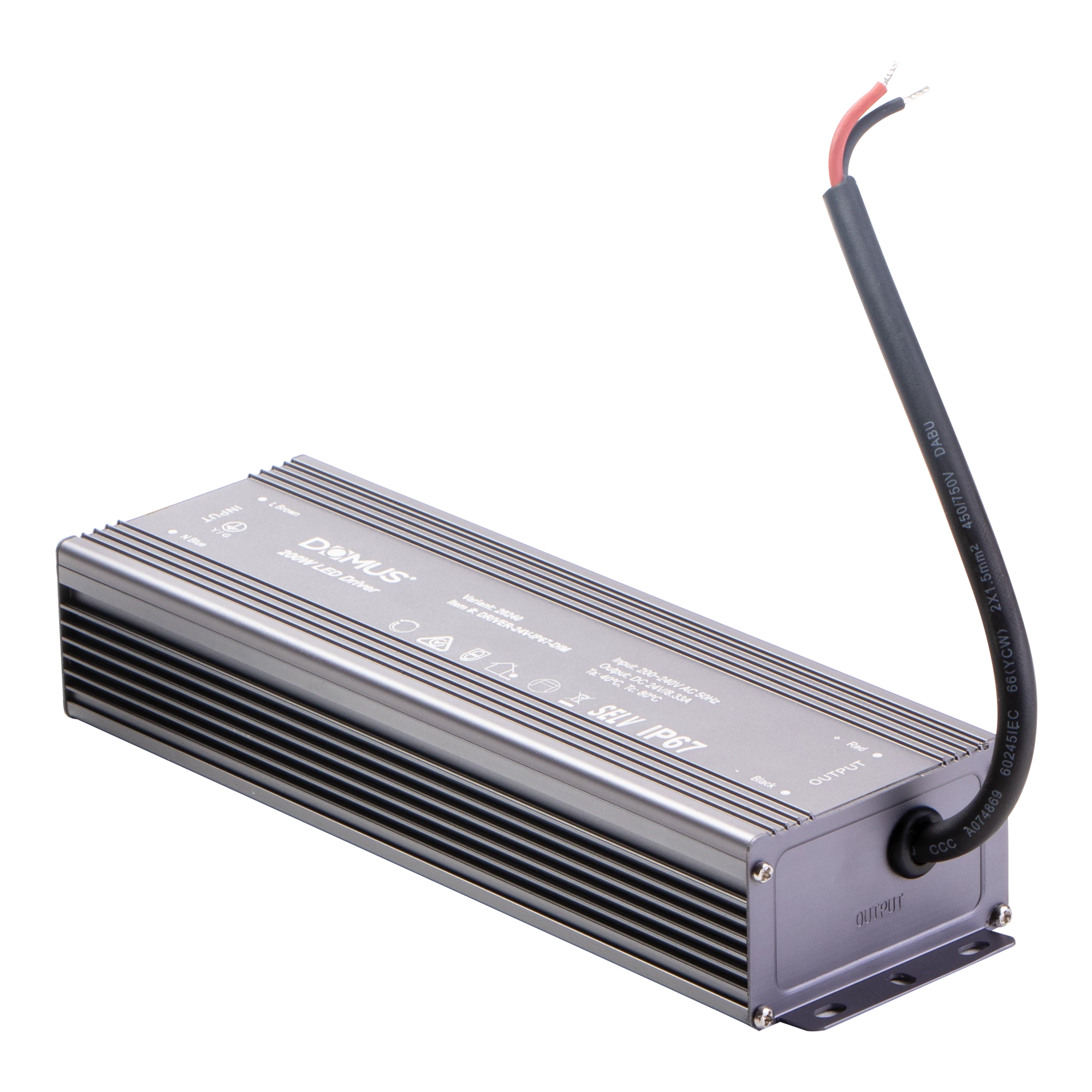

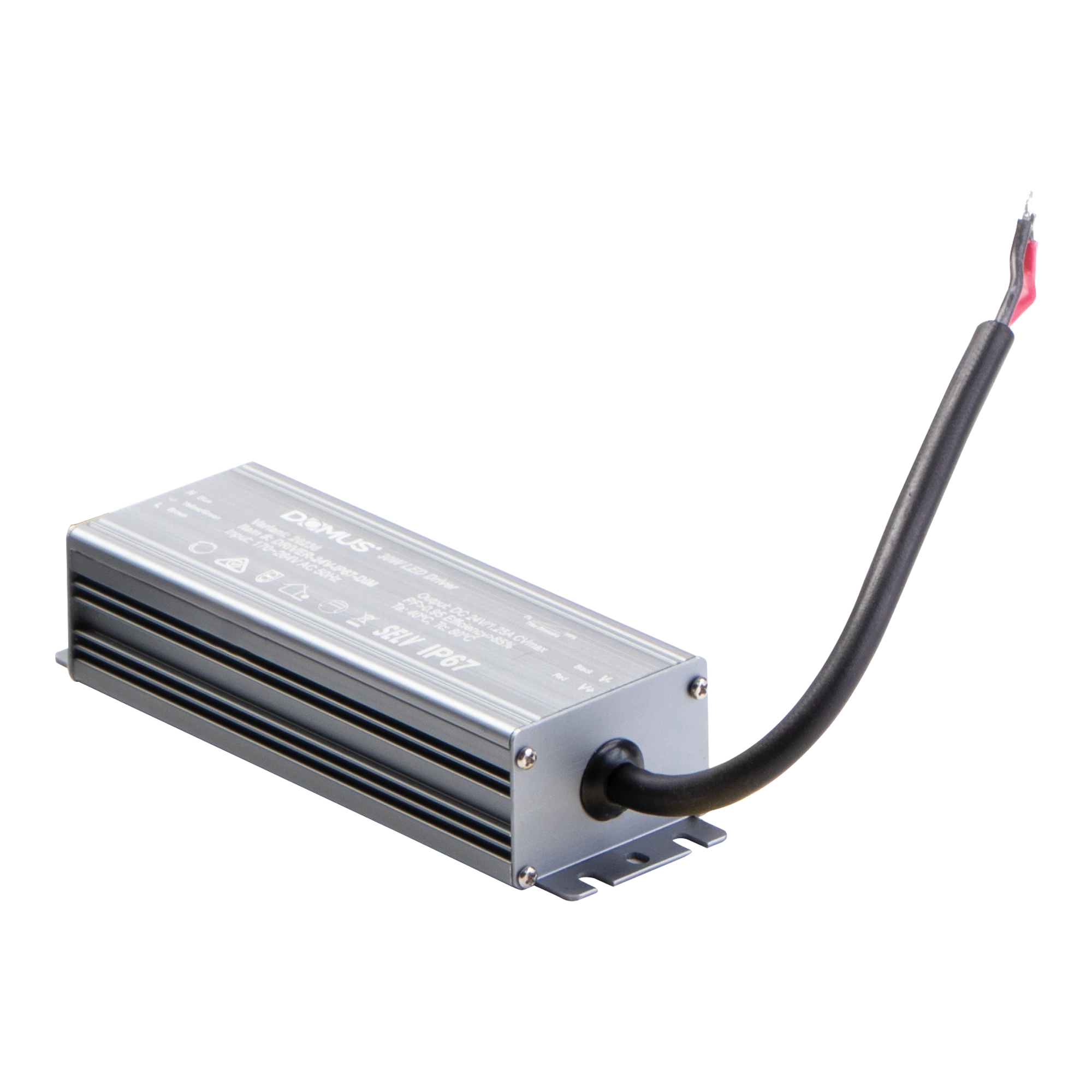

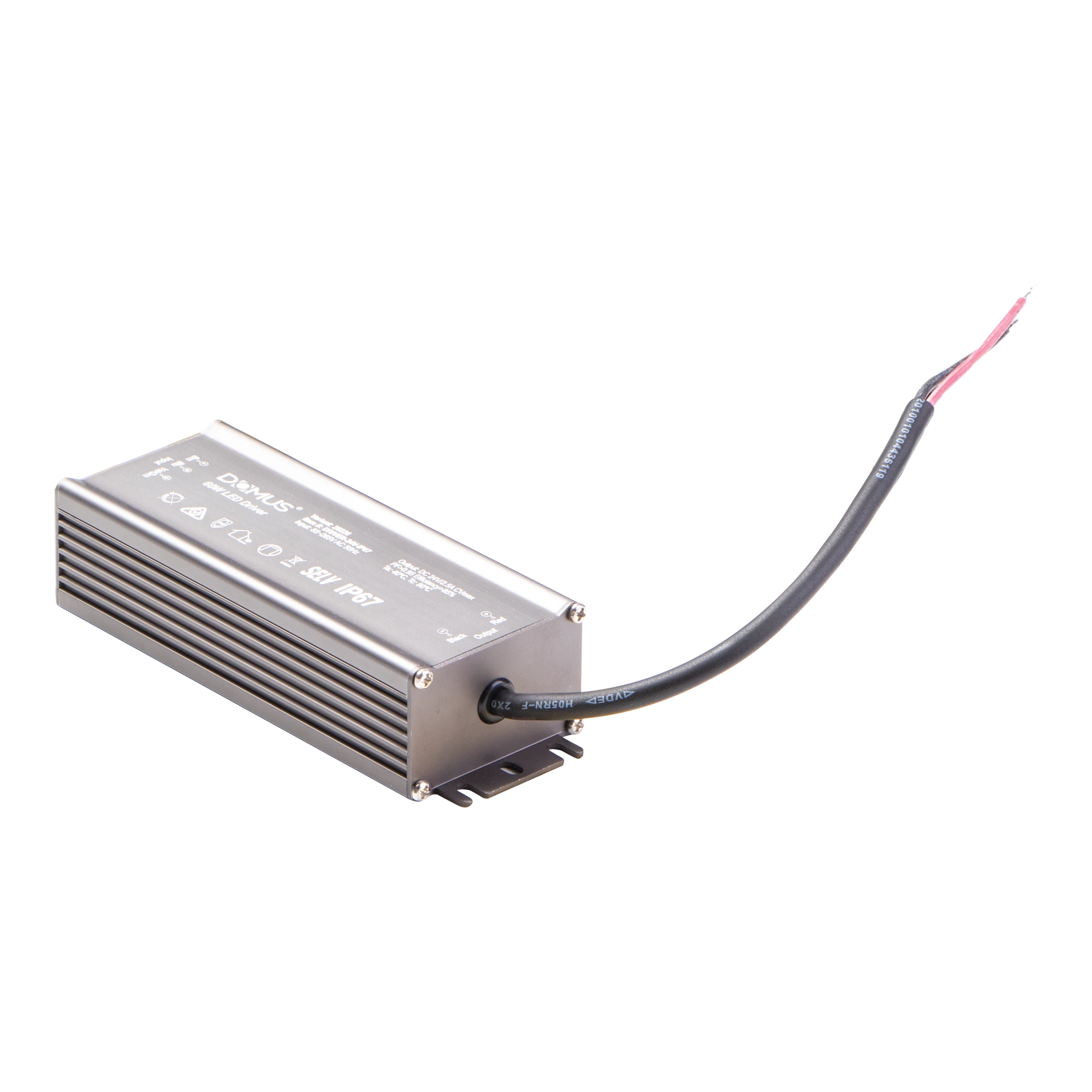

DRIVER-IP67-DIM
Constant Voltage Weatherproof Dimmable LED Driver
The DRIVER-IP67-DIM Series is a range of Triac dimmable 12V DC and 24V DC constant voltage LED drivers designed for outdoor and weatherproof lighting applications.
Features:
- Available in 12V DC and 24V DC constant voltage models
- Triac dimmable with compatible dimmers
- Wattage options: 30W, 60W, 100W, 150W, and 200W
- IP67 rated for outdoor and weatherproof installations
- Built-in short circuit, thermal overload, over-temperature, and over-voltage protection
- Supplied with 1m flex and plug for easy installation
- Parallel wiring configuration
- Suitable for LED strips, inground uplighters, garden spike lights, and landscape lighting
- Durable, reliable performance in demanding outdoor environments
- Backed by a 5-year replacement warranty
Specifications
Input Voltage
240V AC
Output Voltage
12V DC
24V DC
IP Rating
IP67
Wattage
30W
60W
100W
150W
200W
Output Current
2.5A
5A
8.33A
12.5A
16.7A
1.25A
4.2A
6.25A
Dimming
Yes
Flicker Free
Yes
Housing Height
28mm
32mm
39mm
Variants
| Image | Variant ID | Item No. | Input Voltage | Output Voltage | IP Rating | Wattage | Output Current | Dimming | Flicker Free |
|---|---|---|---|---|---|---|---|---|---|
|
|
23193 | DRIVER-12V-IP67-DIM | 240V AC | 12V DC | IP67 | 30W | 2.5A | Yes | Yes |
|
|
23194 | DRIVER-12V-IP67-DIM | 240V AC | 12V DC | IP67 | 60W | 5A | Yes | Yes |
|
|
23195 | DRIVER-12V-IP67-DIM | 240V AC | 12V DC | IP67 | 100W | 8.33A | Yes | Yes |
|
|
23196 | DRIVER-12V-IP67-DIM | 240V AC | 12V DC | IP67 | 150W | 12.5A | Yes | Yes |
|
|
23197 | DRIVER-12V-IP67-DIM | 240V AC | 12V DC | IP67 | 200W | 16.7A | Yes | Yes |
|
|
20236 | DRIVER-24V-IP67-DIM | 240V AC | 24V DC | IP67 | 30W | 1.25A | Yes | Yes |
|
|
20237 | DRIVER-24V-IP67-DIM | 240V AC | 24V DC | IP67 | 60W | 2.5A | Yes | Yes |
|
|
20238 | DRIVER-24V-IP67-DIM | 240V AC | 24V DC | IP67 | 100W | 4.2A | Yes | Yes |
|
|
20239 | DRIVER-24V-IP67-DIM | 240V AC | 24V DC | IP67 | 150W | 6.25A | Yes | Yes |
|
|
20240 | DRIVER-24V-IP67-DIM | 240V AC | 24V DC | IP67 | 200W | 8.33A | Yes | Yes |
