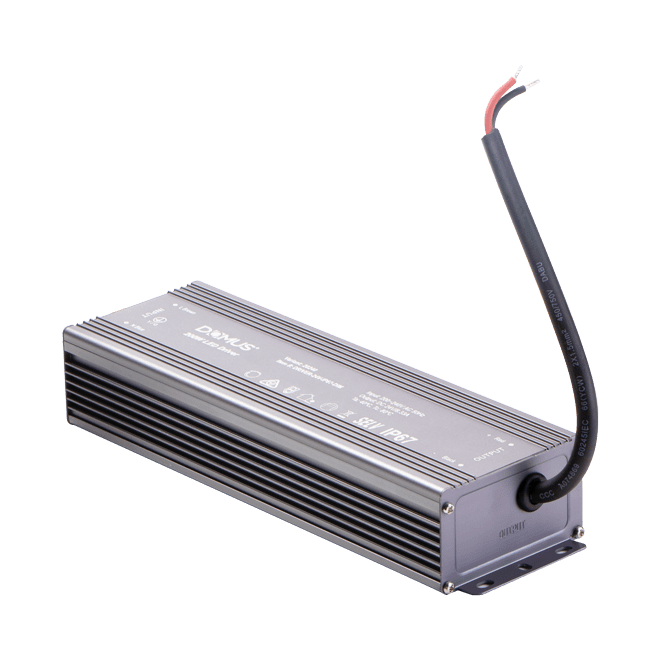

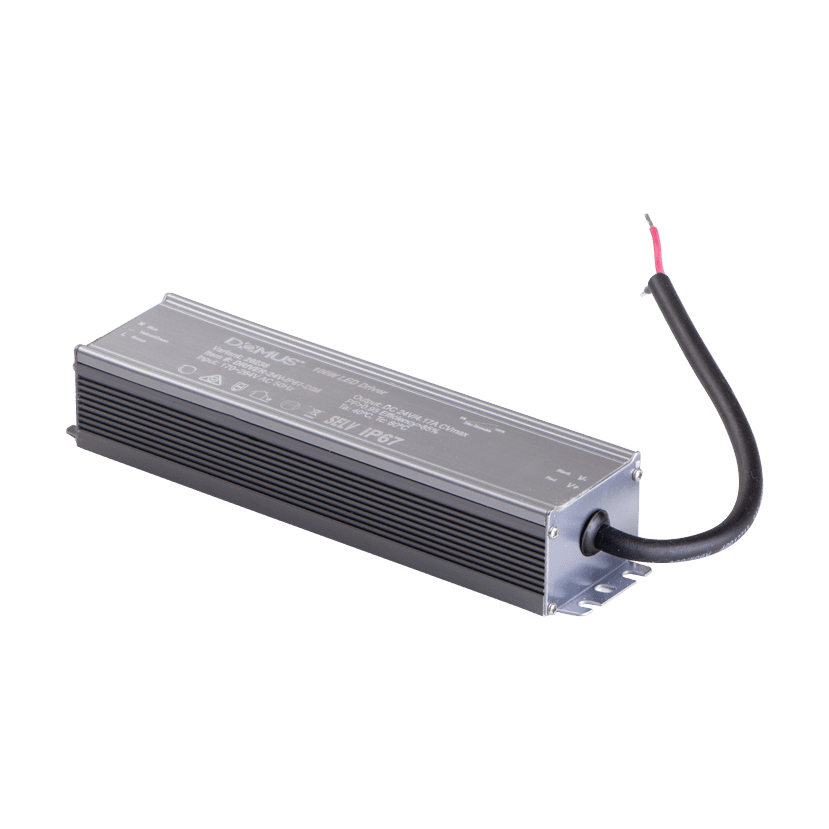

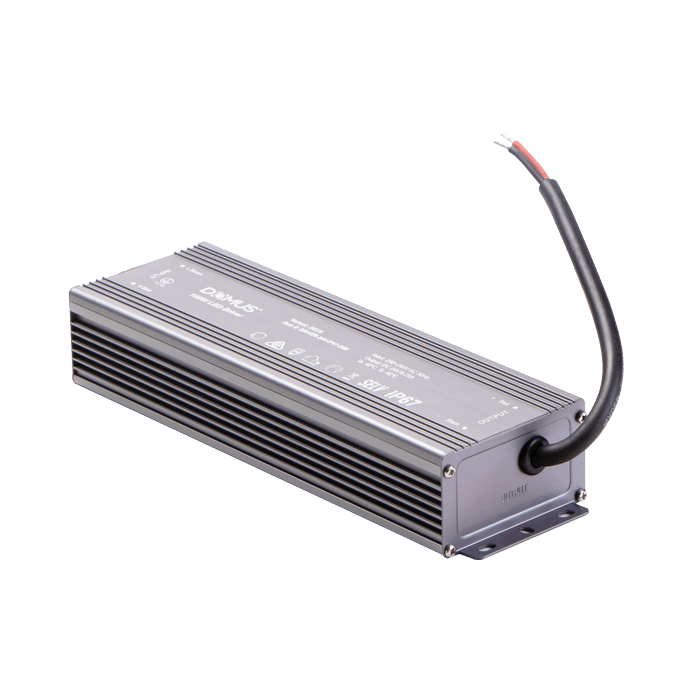

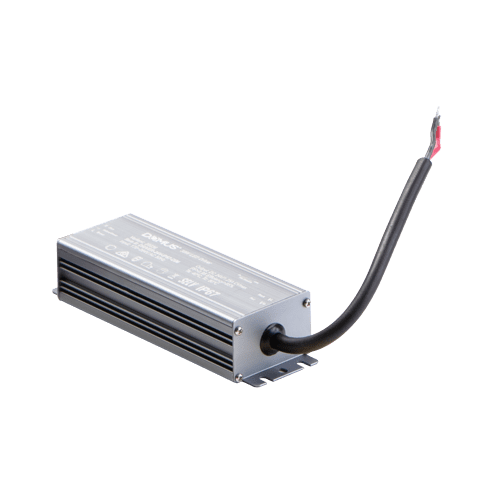

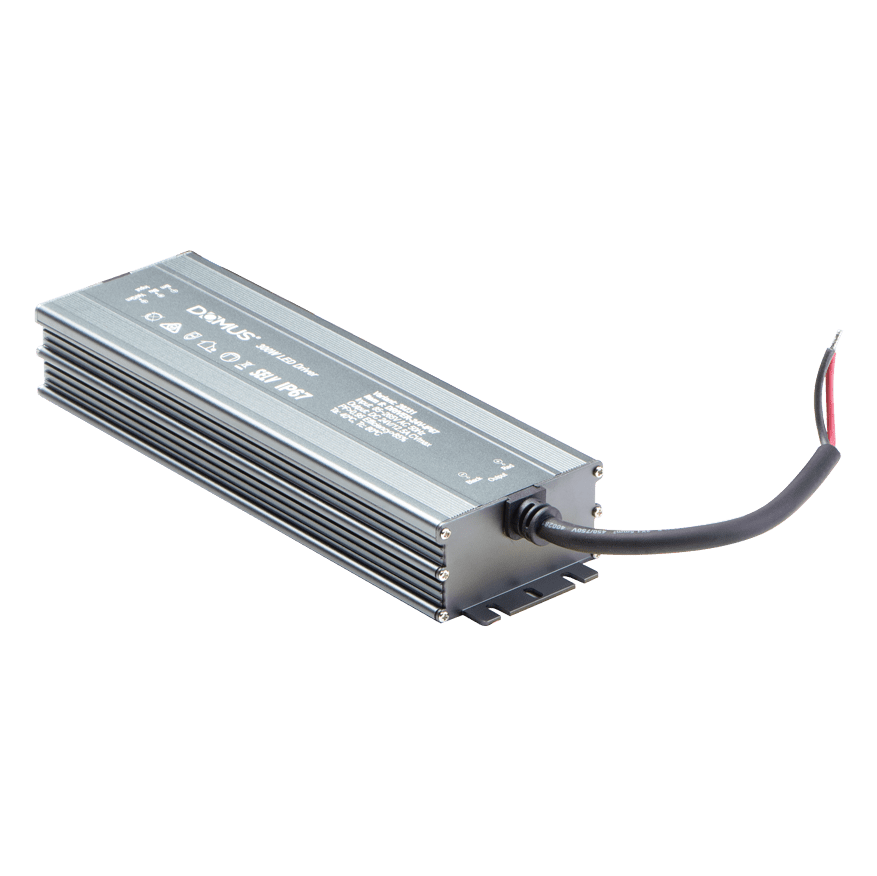

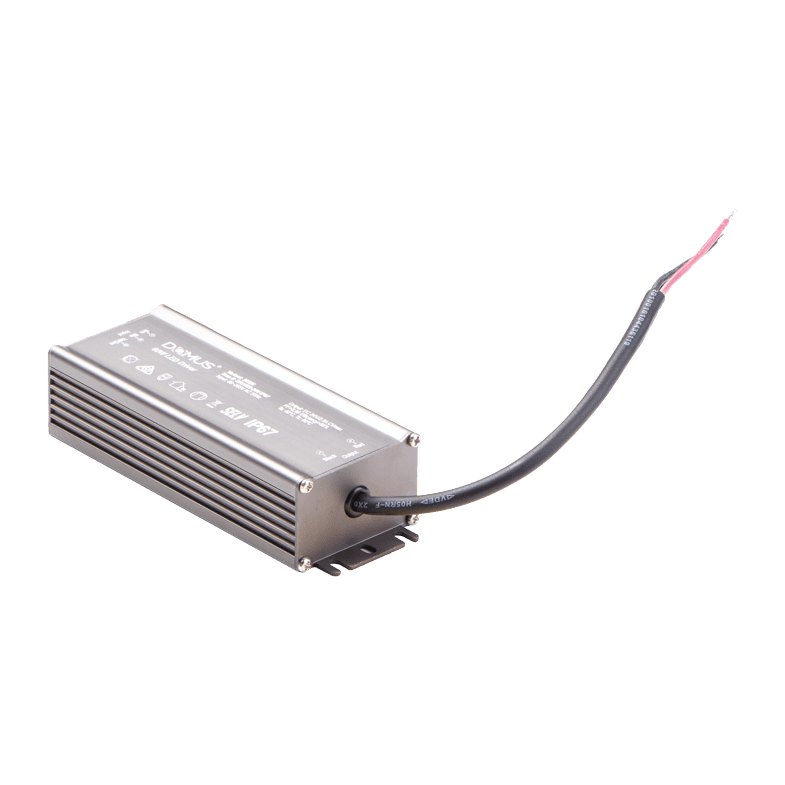

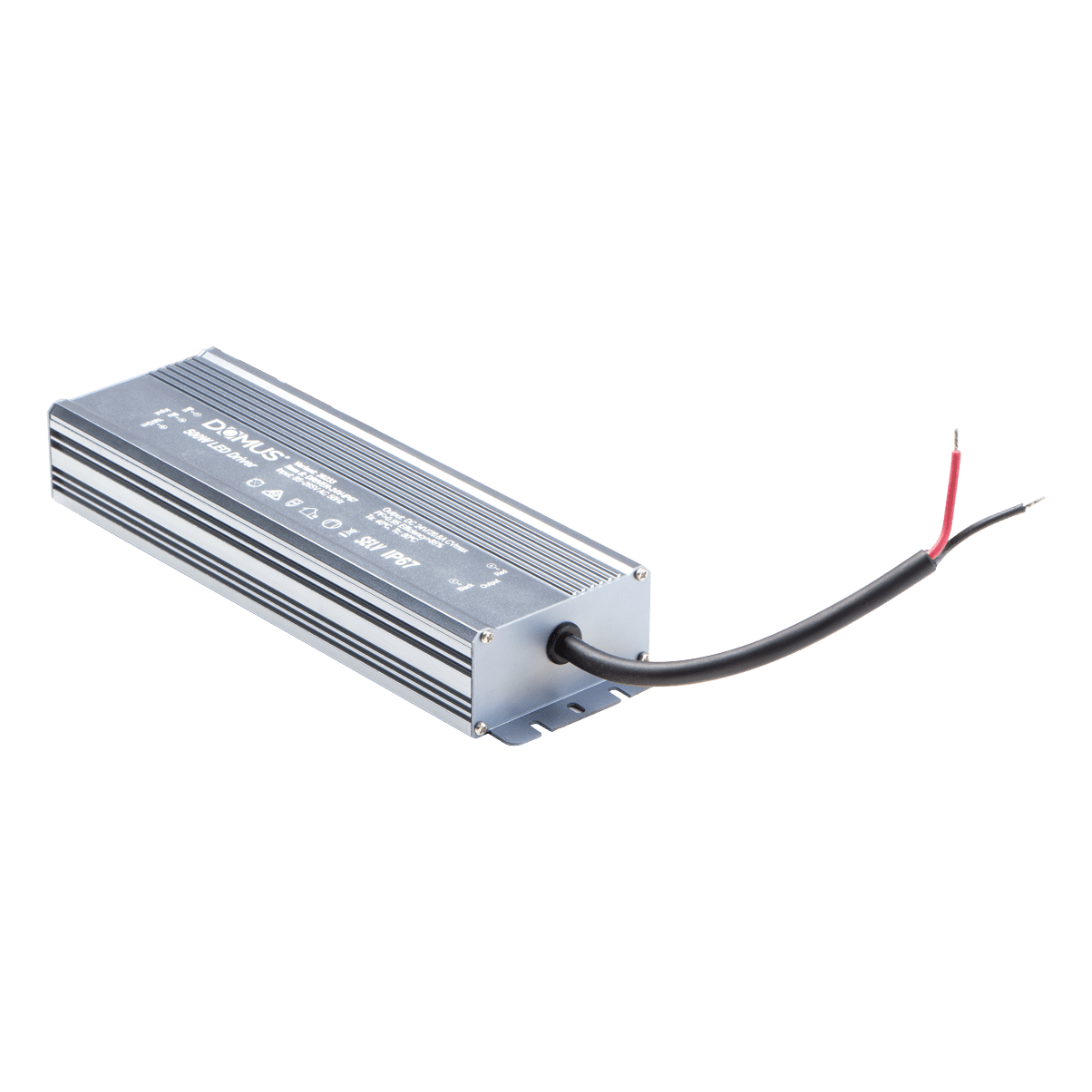

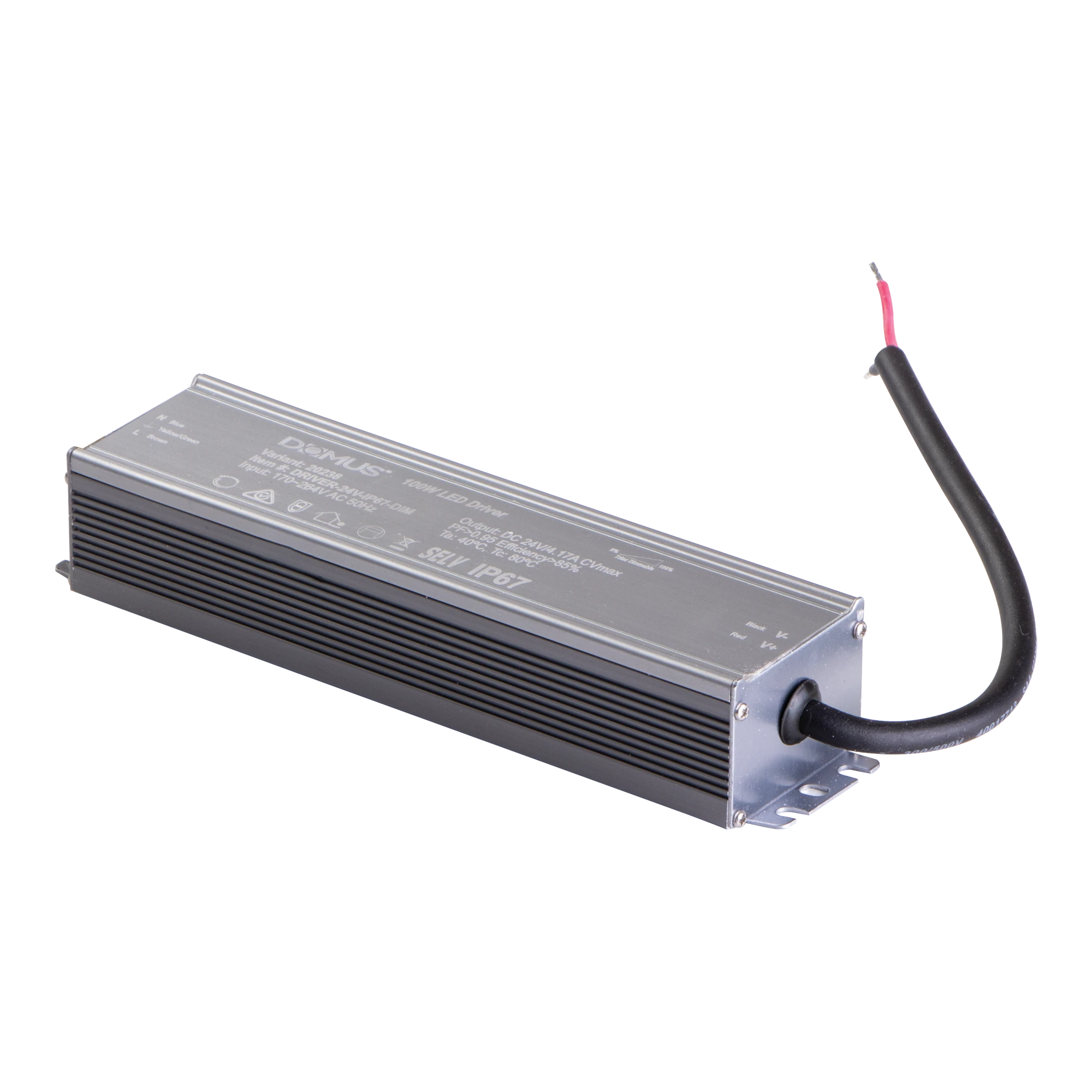

DRIVER-IP67
Constant Voltage Weatherproof LED Driver
The DRIVER-IP67 Series is a range of high-performance 12V DC and 24V DC constant voltage LED drivers designed for outdoor applications.
Features:
- Available in 12V DC and 24V DC constant voltage options
- IP67-rated for outdoor and wet-area installations
- Suitable for LED strips, inground lights, garden spikes, and landscape lighting
- Non-dimmable operation
- Secondary side short circuit protection
- Thermal overload, over-temperature, and over-voltage protection
- Supplied with 1m flex and plug
- Wide wattage range from 20W to 500W (model dependent)
- Parallel wiring configuration
- Backed by a 5-Year Replacement Warranty
Specifications
Input Voltage
240V AC
Output Voltage
12V DC
24V DC
Wattage
20W
30W
60W
100W
150W
200W
300W
400W
500W
IP Rating
IP67
Output Current
1.67A
2.5A
5A
8.33A
12.5A
16.7A
25A
33.3A
41.66A
0.87A
1.25A
4.17A
6.25A
20.84A
Dimming
No
Flicker Free
Yes
Housing Height
32mm
35mm
39mm
34.2mm
43mm
Variants
| Image | Variant ID | Item No. | Input Voltage | Output Voltage | Wattage | IP Rating | Output Current | Dimming | Flicker Free | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
23183 | DRIVER-12V-IP67 | 240V AC | 12V DC | 20W | IP67 | 1.67A | No | Yes |
|
|
|

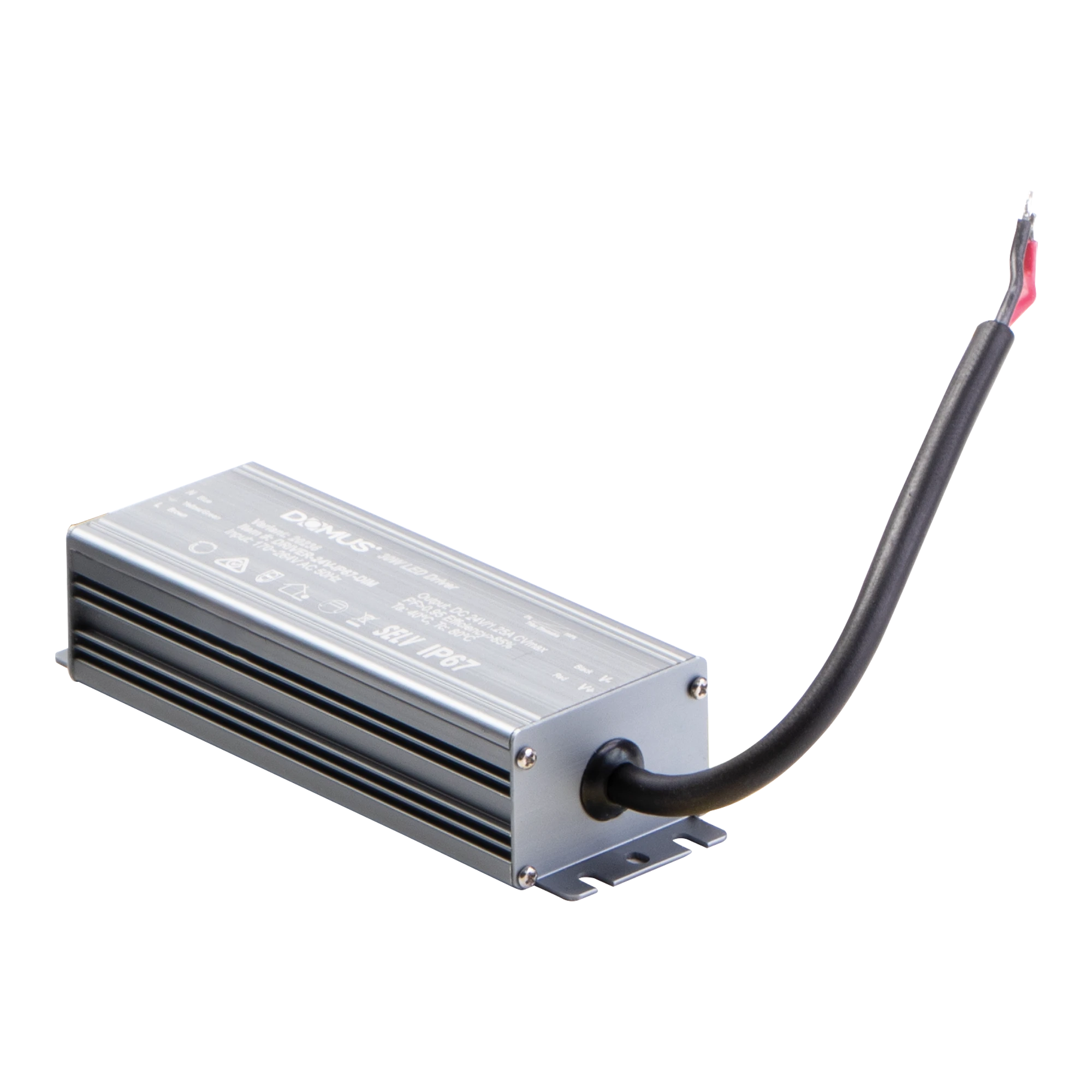

23184 | DRIVER-12V-IP67 | 240V AC | 12V DC | 30W | IP67 | 2.5A | No | Yes |
|
|
|
23185 | DRIVER-12V-IP67 | 240V AC | 12V DC | 60W | IP67 | 5A | No | Yes |
|
|
|
23186 | DRIVER-12V-IP67 | 240V AC | 12V DC | 100W | IP67 | 8.33A | No | Yes |
|
|
|
23187 | DRIVER-12V-IP67 | 240V AC | 12V DC | 150W | IP67 | 12.5A | No | Yes |
|
|
|
23188 | DRIVER-12V-IP67 | 240V AC | 12V DC | 200W | IP67 | 16.7A | No | Yes |
|
|
|
23190 | DRIVER-12V-IP67 | 240V AC | 12V DC | 300W | IP67 | 25A | No | Yes |
|
|
|

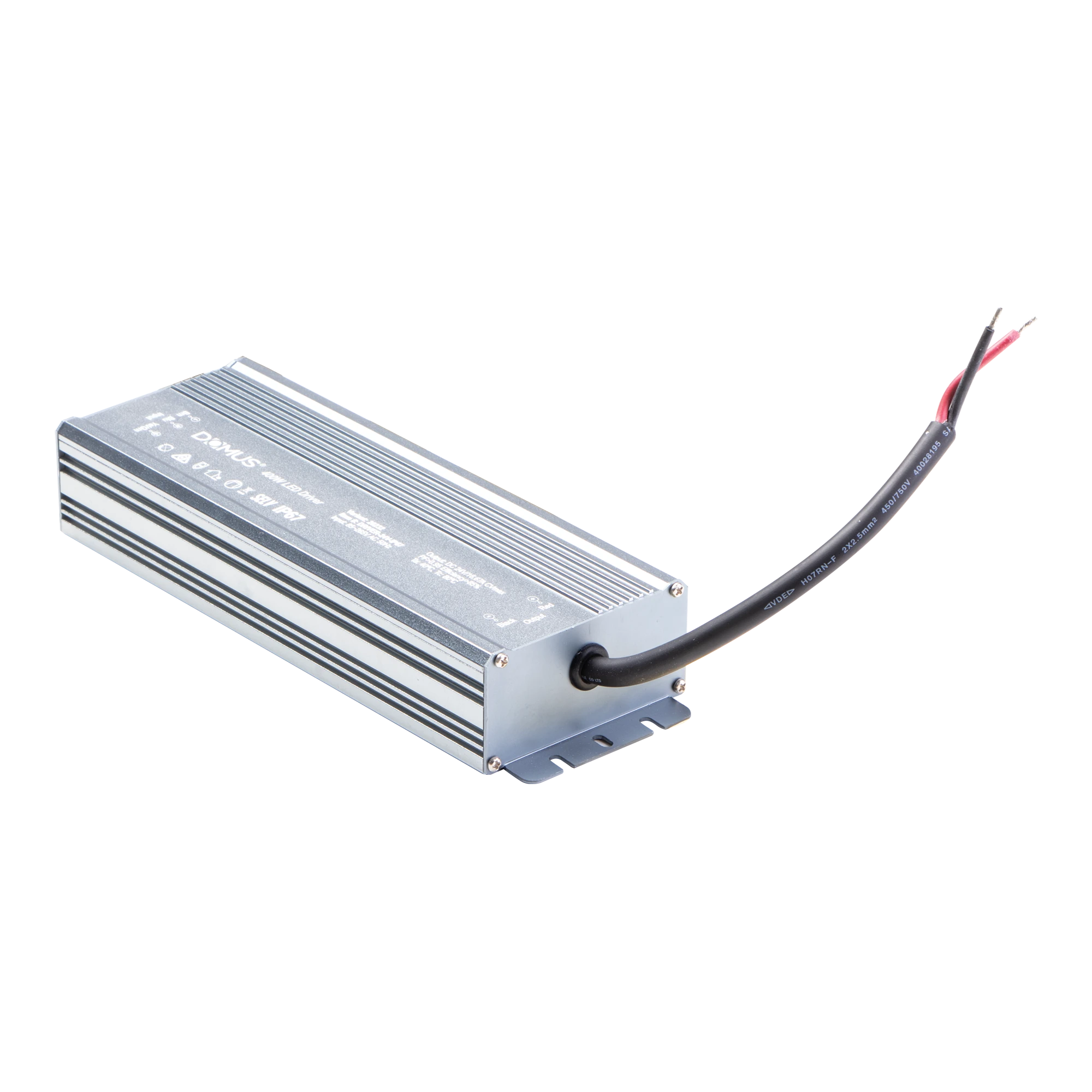

23191 | DRIVER-12V-IP67 | 240V AC | 12V DC | 400W | IP67 | 33.3A | No | Yes |
|
|
|
23192 | DRIVER-12V-IP67 | 240V AC | 12V DC | 500W | IP67 | 41.66A | No | Yes |
|
|
|

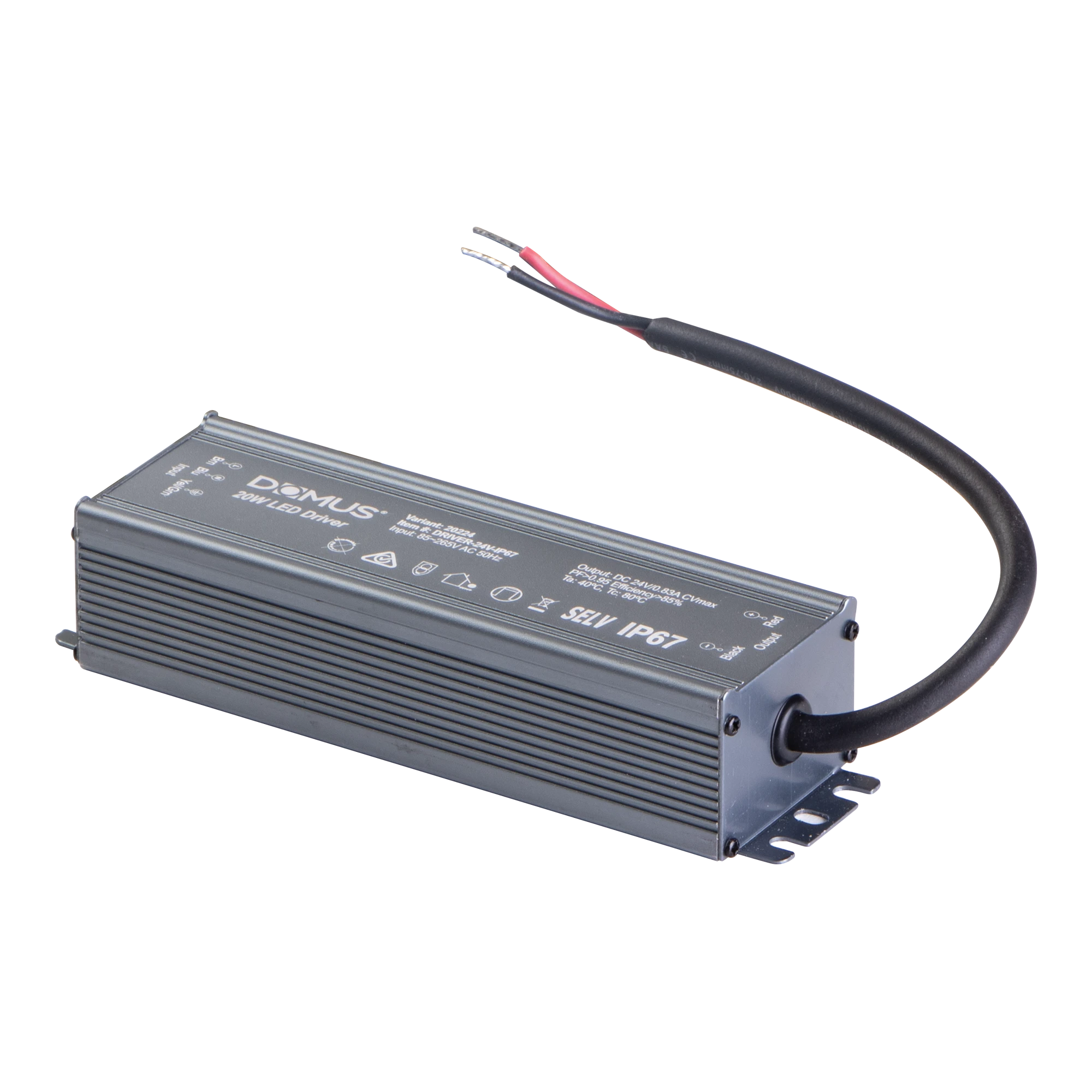

20224 | DRIVER-24V-IP67 | 240V AC | 24V DC | 20W | IP67 | 0.87A | No | Yes |
|
|
|
20225 | DRIVER-24V-IP67 | 240V AC | 24V DC | 30W | IP67 | 1.25A | No | Yes |
|
|
|

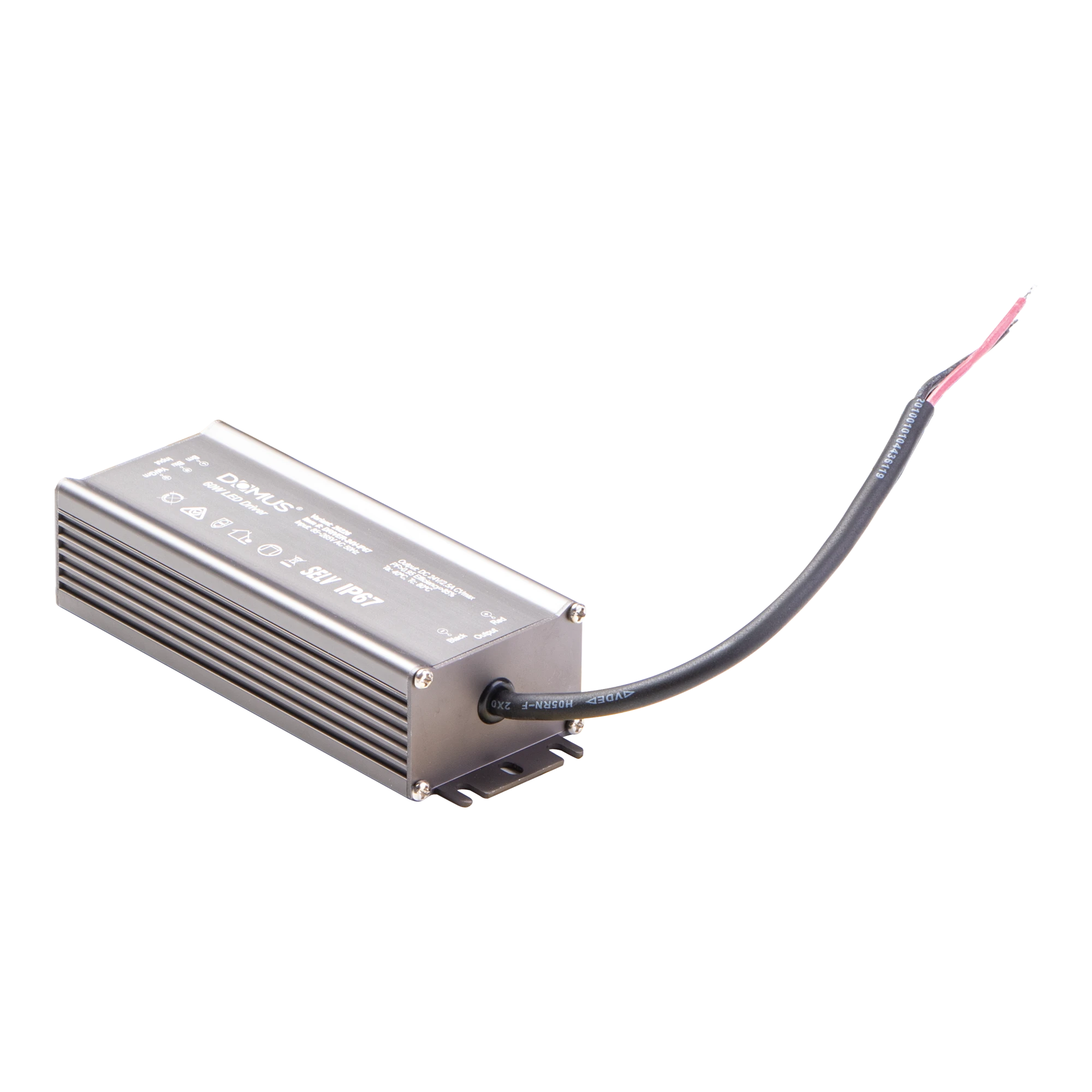

20226 | DRIVER-24V-IP67 | 240V AC | 24V DC | 60W | IP67 | 2.5A | No | Yes |
|
|
|
20227 | DRIVER-24V-IP67 | 240V AC | 24V DC | 100W | IP67 | 4.17A | No | Yes |
|
|
|

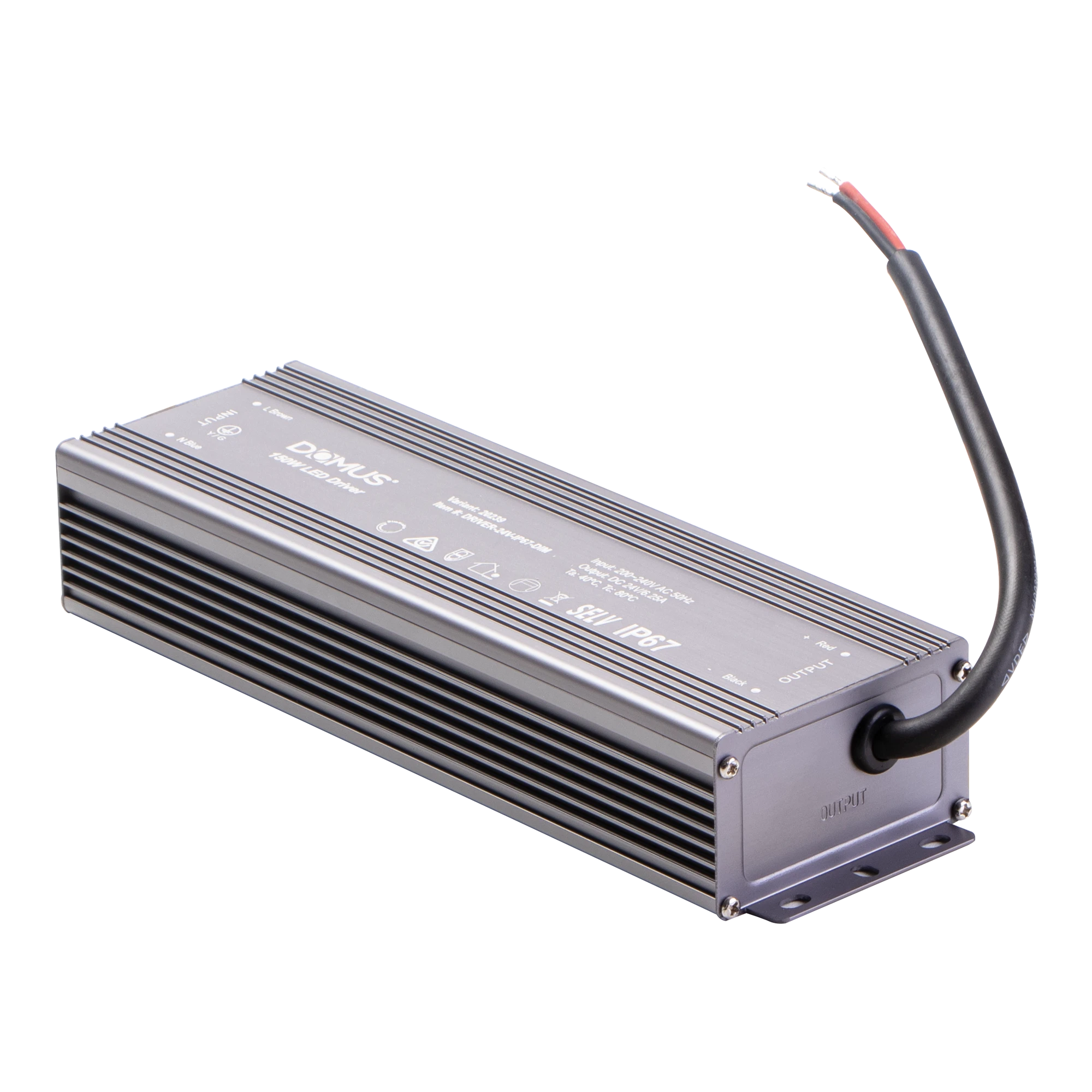

20228 | DRIVER-24V-IP67 | 240V AC | 24V DC | 150W | IP67 | 6.25A | No | Yes |
|
|
|

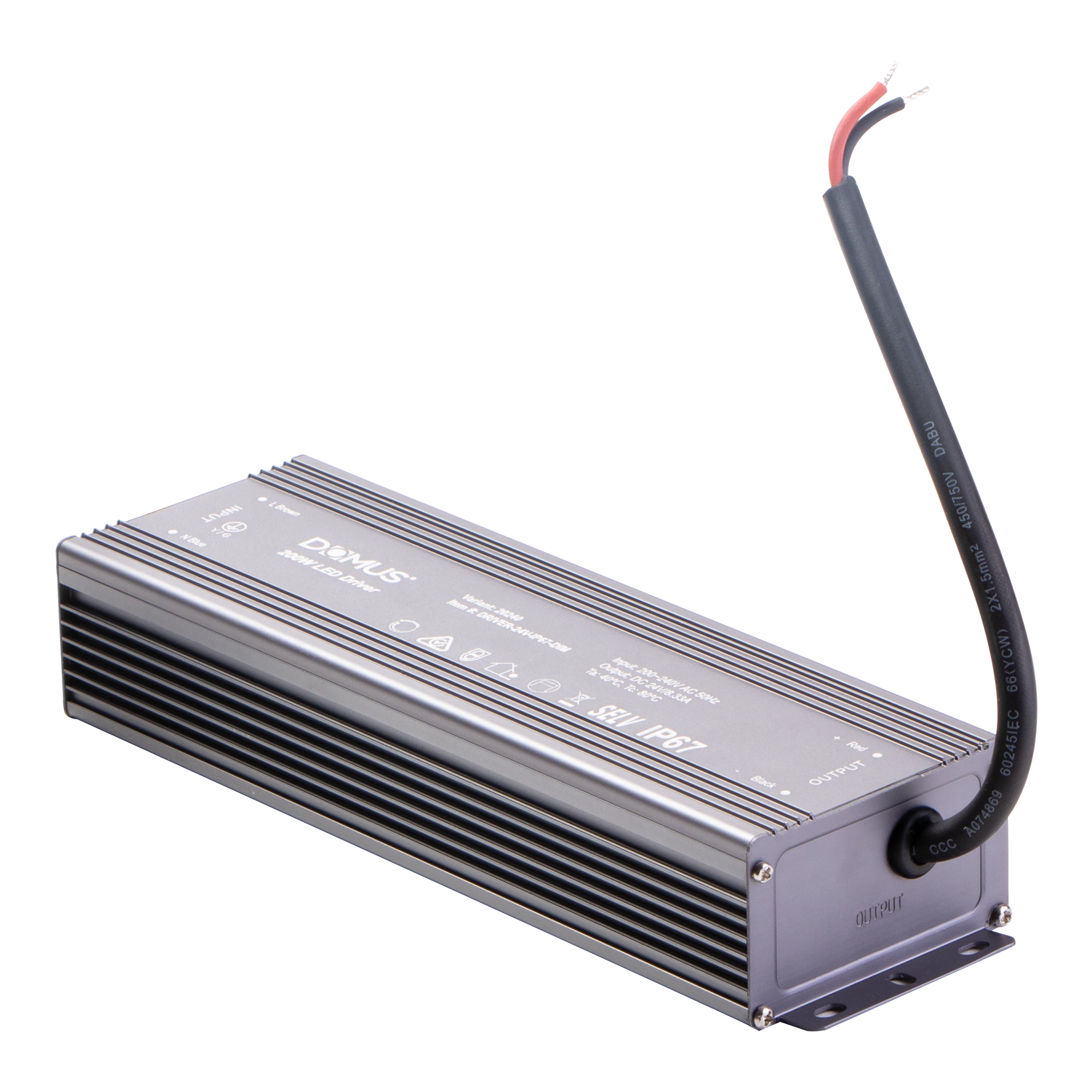

20229 | DRIVER-24V-IP67 | 240V AC | 24V DC | 200W | IP67 | 8.33A | No | Yes |
|
|
|

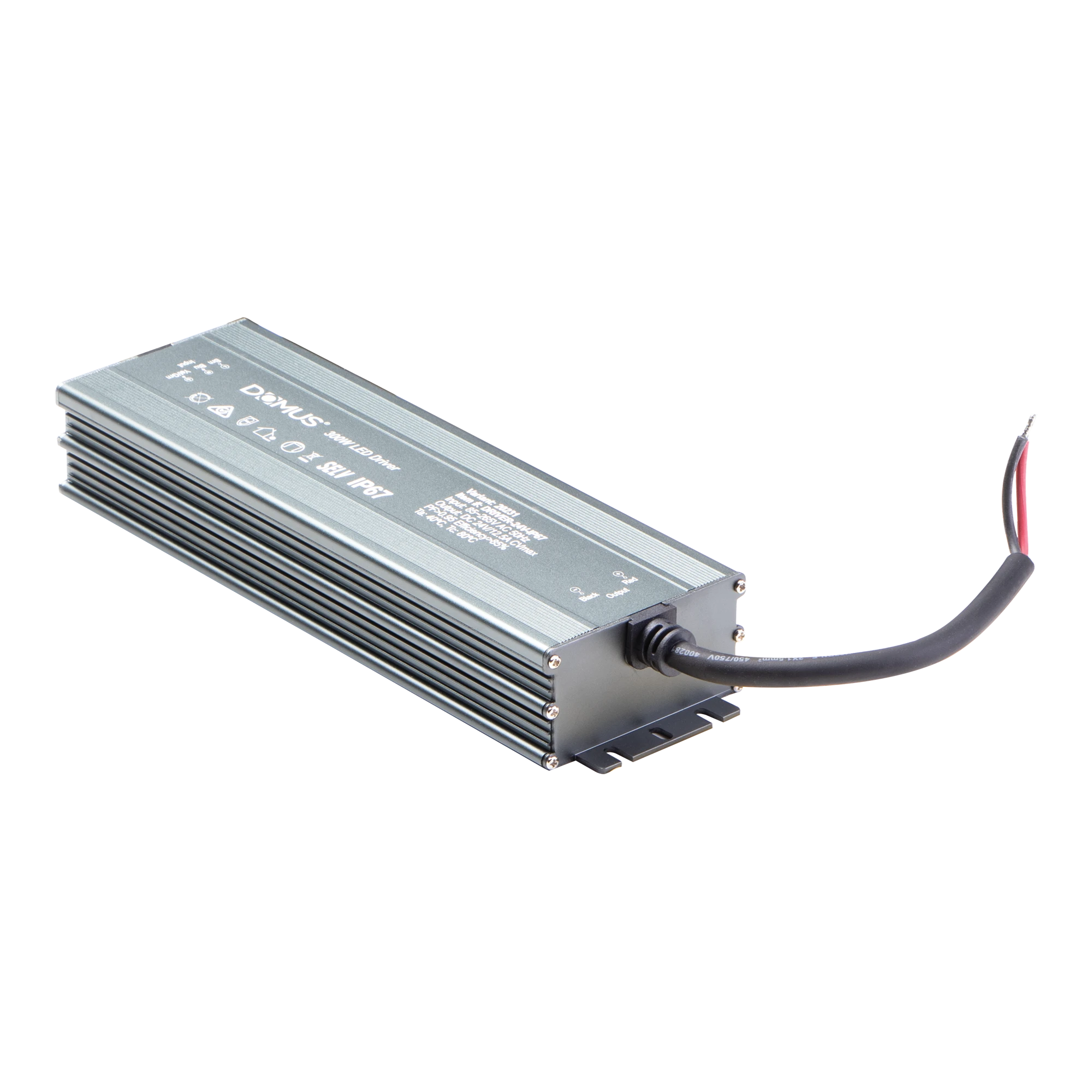

20231 | DRIVER-24V-IP67 | 240V AC | 24V DC | 300W | IP67 | 12.5A | No | Yes |
|
|
|
20232 | DRIVER-24V-IP67 | 240V AC | 24V DC | 400W | IP67 | 16.7A | No | Yes |
|
|
|

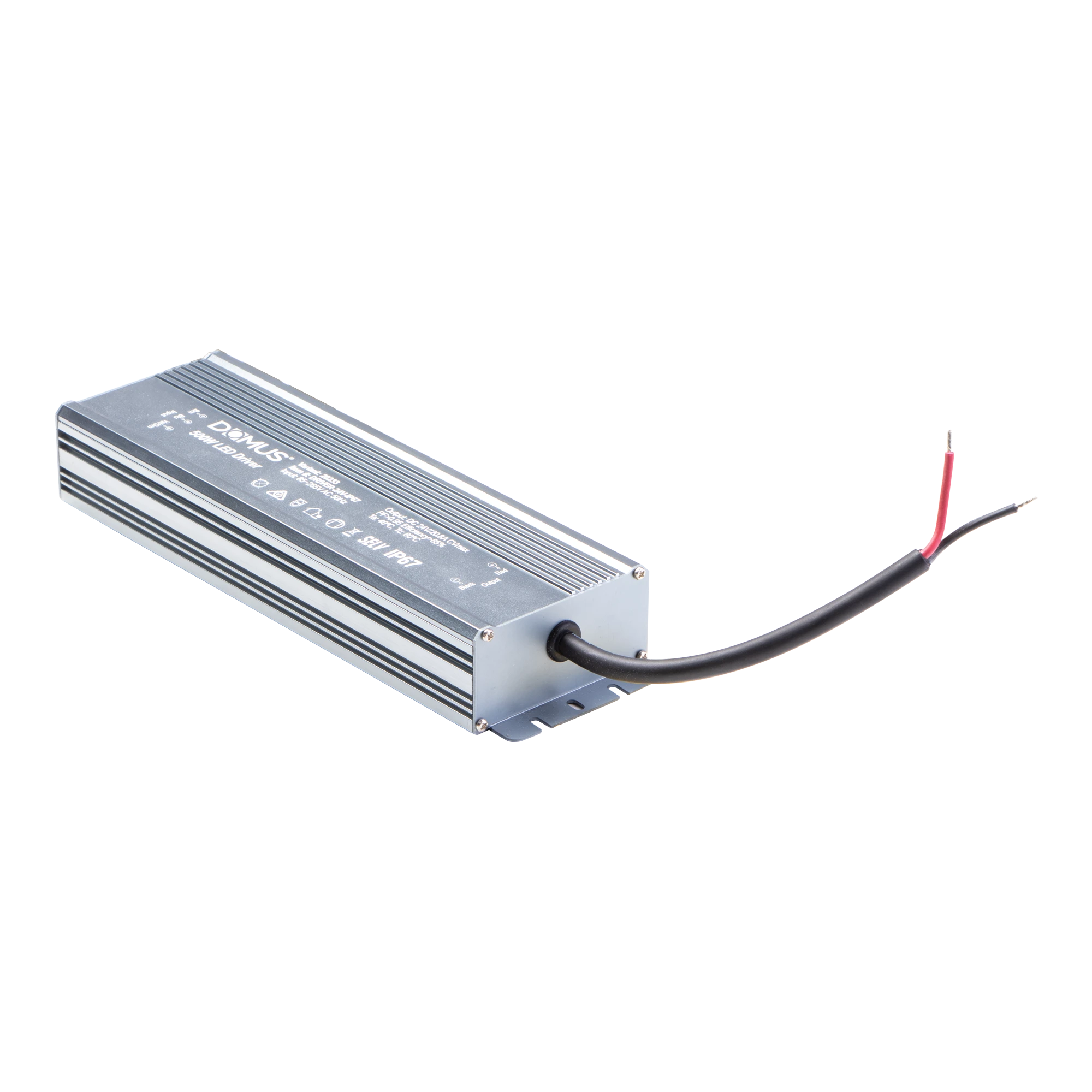

20233 | DRIVER-24V-IP67 | 240V AC | 24V DC | 500W | IP67 | 20.84A | No | Yes |
|
